| Cabinet System |
two independent transmission lines, MDF construction,
handcrafted with real wood veneer
(except black lacquer finish)
|
| Tweeters |
(2) 1.1" (28mm) soft dome,
hexagonal shaped aluminum voice coil wire |
| Woofers |
(2) 6-¼" (160mm) specially treated paper cone,
3" (75mm) hexagonal shaped aluminum voice coil wire |
| Frequency Range |
35 - 22,000 Hz |
| Crossover Frequencies |
TL 1: 3,800 Hz
TL 2: 2,100 Hz |
| Impedance |
6 Ohms |
| Power Rating |
200 Watts |
| Recommended Amplifier |
40 - 300 Watts per channel |
| Cabinet Size |
Height - 55" (139.7 cm)
Width - 8-½" (21.6 cm)
Depth - 13" (33.0 cm) |
| Weight |
70 lbs. (31.8 kg) each |
|

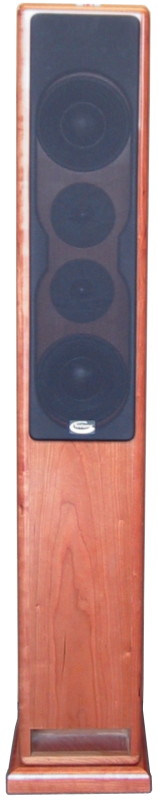

The Maestro is latest design from the Renaissance Series and is a double transmission line floor-standing speaker. This system incorporates two 1.1" soft dome tweeters coupled with two of 6-¼" (3" voice coils) specially treated paper cone woofers per cabinet. The bottom part of the cabinet is a forward opening full TL while the top is a shorter TL that opens on the back of the speaker.
The Maestro has similar sound and character to the Prelude - very open with an incredible amount of depth, detail, precise focus and tight bass. The character of the tweeter produces smooth and transparent sound. The woofer brings out detailed and natural sounding mid-bass. The combination of two separate systems into one enclosure is unique and innovative. Each system uses its own tweeter, woofer and crossover network. This combination brings out a natural sound that is intended to be the closest approach to live music. |
|
| |
|
