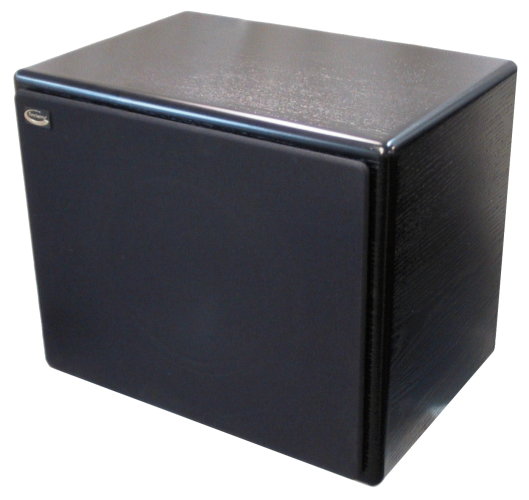

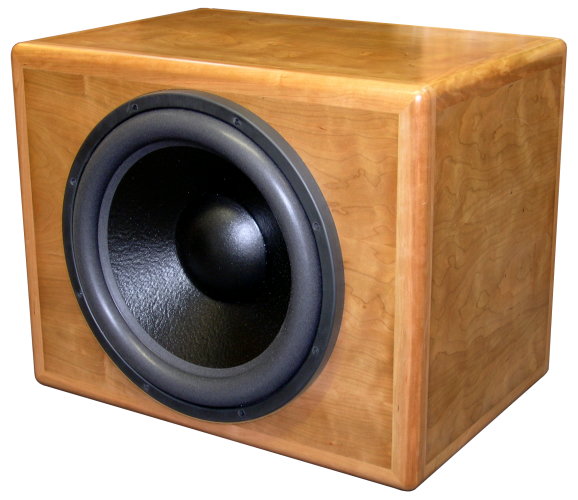

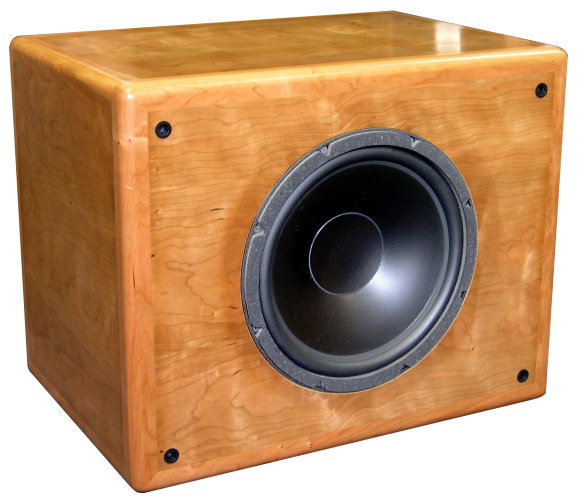

The Phantom home theater subwoofer has bass performance that is deep, tight and fast. It features a 12" aluminum die-cast active woofer with a large magnetic system, polypropylene cone, Santoprene surround and large voice coil. The active woofer is complemented with a 15" aluminum die-cast passive radiator tuned down to 17 Hz which is mounted on the opposite baffle. The cabinet is constructed from 1" thick MDF (medium density fiberboard) to minimize cabinet resonance. The subwoofer system is driven by a 300 watt high-current amplifier.
.
|
Cabinet
|
sealed, MDF construction,
handcrafted with real wood veneer
|
| Amplifier |
300 watts / 0.05% THD
volume control, detachable power cord,
auto power on/off, master power switch,
LED indicator: green (on) / red (off),
115/230 Volt Switch able |
| Active driver |
12" aluminum die-cast subwoofer,
10mm linear excursion (20mm total),
polypropylene cone, Santoprene surround |
| Passive driver |
15" aluminum die-cast passive radiator,
large foam surround |
| Frequency Range |
17 - 150 Hz ± 3dB |
| Inputs |
low level & high level |
| Outputs |
low level & high level |
| Crossover |
variable: 50Hz - 100 Hz @ 12dB
switch able: low-pass or full range operation |
Phase Switch
|
0° & 180° |
Cabinet Weight
|
75 lbs ( kg)
|
| Cabinet Size |
Height - 18" (460mm) Width - 15" (380mm) Depth - 22" (560mm) |
|
