Renaissance Duet & Phantom review by Max Dudious of Positive
Feedback (October/November 2003)
| Cabinet |
2-way, semi-transmission line,
MDF construction
handcrafted with real wood veneer
(except black lacquer finish)
|
| Tweeter |
1.1" (28mm) soft dome, liquid cooled |
| Woofer |
6-¼" (160mm) vented magnet system,
3" (75mm) voice coil,
specially treated paper cone |
| Frequency Response |
42 - 21,000 Hz ±3dB |
| Impedance |
6.5 Ohms
|
| Power Handling |
150 watts RMS |
| Sensitivity |
89 dB SPL |
| Cabinet Size |
Height - 15" (381mm)
Width - 8" (203mm)
Depth - 12" (305mm) |
| Weight |
26 lbs. (11.8 kg) each |
|

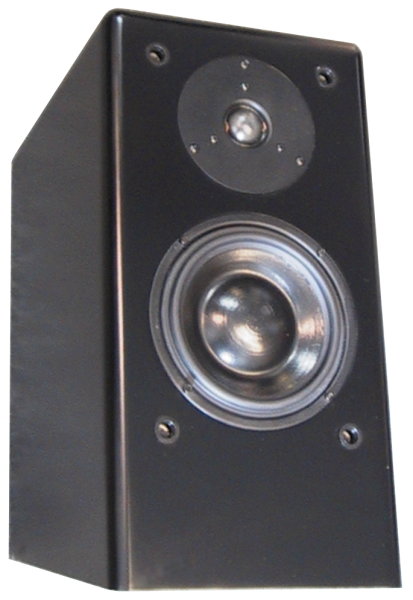

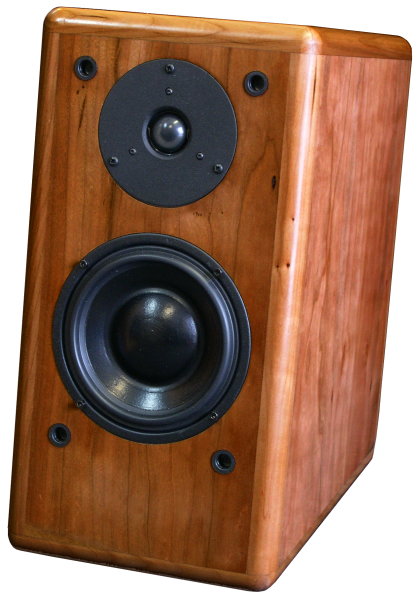

The Duet uses a 1.1" (28mm) silk dome tweeter. The tweeter uses ferrofluid for cooling as well as advanced hexagonal shaped voice coil wire to help dissipate heat and handle high power. The 6-½" specially treated paper cone woofer is vented out the back of the motor system to open up the sound. The 3" (75mm) voice coil of the woofer uses the same technology as the tweeter. The rigid cabinet is angled to produce greater depth and precise imaging. The front edges of the cabinet are of a radius design (rounded) to help eliminate
diffraction in the mid and high
frequencies.
|
|
| |
|
