* reference quality
* high power handling
* heavy duty gold plated input tags
* all aluminum body
* grill & flange can be removed for custom  painting to match the decor of your install

* replaceable dome assembly

Faceplate Diameter 110mm   (4.33")
Faceplate Thickness 3.25mm  (0.13")
Cutout   77mm   (3.03")
Mounting Depth    61mm   (2.40")
Dome specially selected & treated silk dome
Voice Coil 28mm (1.1") diameter, aluminum former,
hexagonal shaped aluminum wire
Motor System triple ferrite magnet, vented pole,
damped rear chamber
Power Handling (RMS) 250 watts
Transient Power Handling (10ms)  1,000 watts
Frequency Response 1,750 - 22,000 Hz
Resonant Frequency (FS) 675 Hz
Sensitivity (SPL 1w/1m) 92.0 dB
DC Resistance (RE) 5.2 Ohms
Nominal Impedance 6.3 Ohms
Equivalent Cas Air Load (Vas) 0.015 litres
Weight 1.1 kg (2.5 lbs)

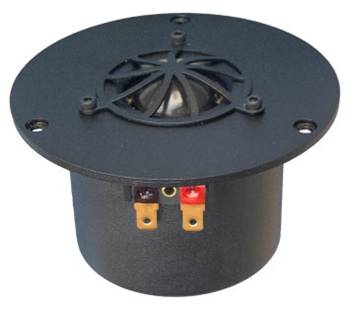

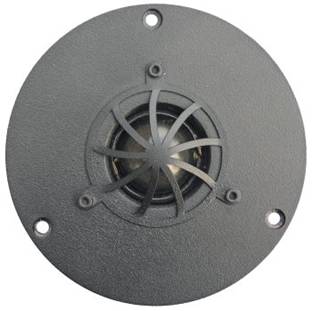

The Triumph!, Renaissance's newest car tweeter, is part of the  Prestige Series Car Speakers. The tweeter production begins
by specially selecting a silk dome, which is then treated with  our proprietary solution.  This meticulous process yields a
tweeter dome that brings out all the detail, musicality and
openness from your sound system.  The voice coil wire is
made from hexagonal shaped aluminum which is wound
around an aluminum former that allows use with any high
powered amplifiers.  The triple stacked magnet system
provides extremely fast and accurate control of the
voice coil/dome assembly yielding unmatched fast and
accurate sound.  The faceplate and magnet system housing
are machined out of aluminum for ruggedness and strength.

Back to Prestige Line
