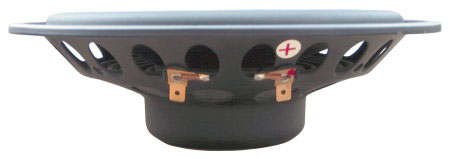

WR-8 8" Woofer
Mounting Depth
 220mm (8.7")
   79mm (3.1")
   69mm (2.7")
 192mm (7.6")
Power Handling (RMS)  200 Watts
Transient Power (10ms)  1,000 Watts
Voice Coil  75mm (3")
 hexagonal shaped aluminum
 aluminum former
Dome Material  Damped Polymer
Magnetic System  Double Magnet System
Frequency Response  28 - 3,000 Hz
Resonant Frequency (FS)  30 Hz
Sensitivity 1 watt/m  90 dB
DC Resistance (RE)   4 Ohms
Mechanical Q Factor (QMS)  2.95
Total Q Factor (Q/T)  0.55
Equivalent Cas Air Load (VAS)   58 liters
Net Weight                            1.2 Kg (2.7 lbs)
The WR-8 is an unparalleled 8" woofer with a 3" diameter voice coil, vented double magnet motor system, aluminum former and aluminum hexagonal shaped wire.  It is not your average woofer.  It is a woofer with midrange qualifications - making it compatible with a single tweeter to complete an entire system.  The WR-8 can be crossed as high as 3,000 Hz while maintaining good, deep and tight bass.  This woofer has a very shallow mounting depth and can be used for many different applications.
