R-5 5" Integra
 Mounting Depth
 130mm (5.1")
   66mm (2.6")
   60mm (2.4")
 120mm (4.7")
 Power Handling  100 Watts
 Transient Power (10ms)  250 Watts
 Woofer Voice Coil  54mm (2.1")
 hexagonal shaped wire
 aluminum wire
 aluminum former
 Woofer Cone  special formula paper cone
 Tweeter Voice Coil  28mm (1.1")
 hexagonal shaped wire
 aluminum wire
 aluminum former
 Tweeter Dome  specially treated soft dome
 Magnetic System  double magnet motor drive
 Frequency Response  65 - 20,000 Hz
 Resonant Frequency (FS)  53 Hz
 Sensitivity 1 watt/m  89 dB
 DC Resistance (RE)   4 Ohms
 Net Weight                    0.6 kg ( 1.4lbs)

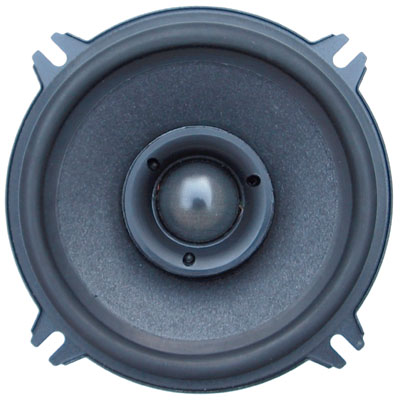

The R-5 is the newest version of our popular Integra line of car speaker systems.  It features a 5" woofer integrated with a 28mm (1.1") semi- horn soft dome tweeter resulting in a special full-range speaker with a double magnet motor system.  The tweeter uses the internal space of woofer motor structure as its acoustic chamber opening up the sound of the system.  The R-5 is very compact and is easily mounted in the door, rear deck or kick panel of any car.
