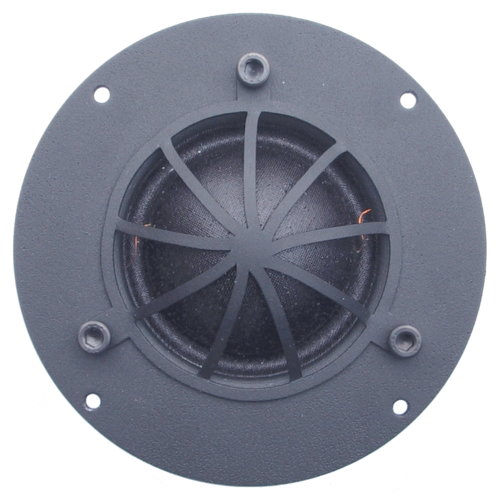

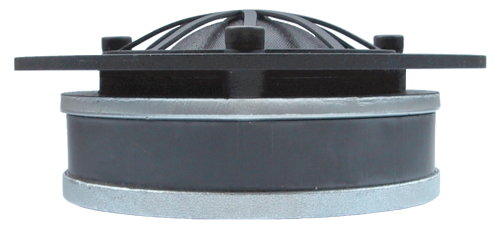

MR-56 Soft Dome Midrange
___________________________________________________________________________________________________
Diameter
Depth
Mounting Depth
Cutout
 120mm (4.7")
   49mm (1.9")
   35mm (1.4")
 100mm (3.9")
Power Handling (RMS)   200 Watts
Transient Power (10ms)  1,000 Watts
Voice Coil Diameter  55mm (2.2")
Dome Material  Treated Fabric
Magnetic System  Ferrite
Frequency Response  450 - 6,000 Hz
Resonant Frequency (FS)   420 Hz
Sensitivity 1 watt/m  91 dB
DC Resistance (RE)   5.2 Ohms
Net Weight  1.2 Kg (2.5 lbs)
The Renaissance MR-56 soft dome midrange is our best sounding midrange we have built to date.  It is a new and exciting product from Renaissance Audio Group.  It features our new style aluminum grill that is designed for protection while letting the most music reach your ears.  The specially treated fabric dome produces smooth, silky music.  An internal chamber helps to open up the sound and lower the resonant frequency.  Hexagonal shaped aluminum voice coil wire, and an aluminum former and Ferro fluid cooling maximizes heat transfer allowing the driver to run cooler and handle high power.
