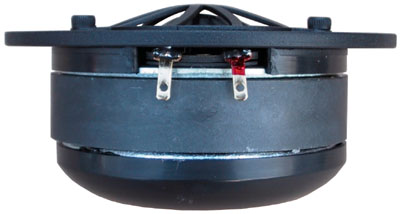

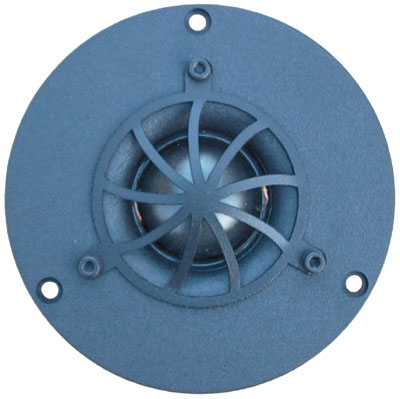

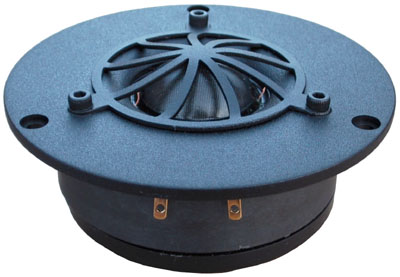

CR-101se soft dome tweeter
The CR-101se tweeter features a 28mm (1.1") treated silk dome, Ferro fluid cooling and hexagonal shaped aluminum voice coil wire for higher power handling.  Equipped with a vented magnet system and rear chamber, this tweeter has a very open sound and a low resonant frequency (you can cross this tweeter as low as 2,000 Hz with a 12dB network).
Depth Mounting Cutoutx
 94mm (3.7")
 37mm (1.5")
 76mm (3.0")
Power (RMS)  200 Watts
Peak Power (10ms)  1,000 Watts
Dome  Silk Soft Dome
 Specially Treated
Voice Coil  28mm (1.1")
 hexagonal wire
 aluminum wire
 aluminum former
Frequency Response  1,800 - 22,000 Hz
FS  700 Hz
Sensitivity  91 dB
RE  5.5 Ohms
VAS  0.01 liters
Net Weight  0.6 Kg (1.3 lbs)
