MHT-36
 |
| APPLICATION INFORMATION |
|
|

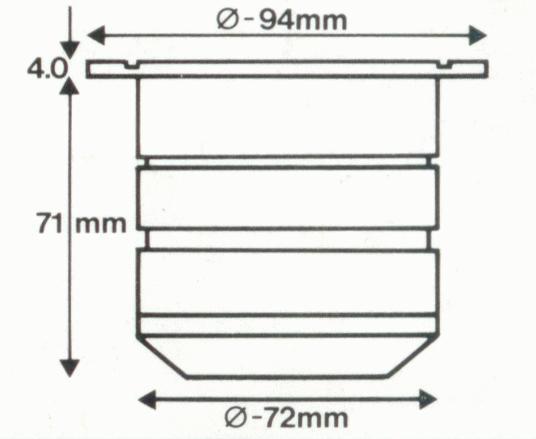

| Overall Dimensions |
|
Click for Diagram
|
| Nominal Power Handling (RMS) |
|
200 W |
| Transient Power - 10 ms |
|
1,000 W |
| Nominal Impedance |
Z
|
8 W |
| Sensitivity 1W/1M |
|
97 dB |
| Frequency Response |
|
2,000 - 20,000 Hz |
| Resonant Frequency |
FS
|
800 Hz |
| VOICE COIL |
|
|
| Voice Coil Diameter |
f
|
28 mm (1.125") |
| Voice Coil Height |
|
2.7 mm |
| Voice Coil Former |
|
Aluminum |
| Voice Coil Wire |
|
Aluminum |
| Number of Layers |
|
2 |
| DC Resistance |
RE
|
5.2 W |
| Voice Coil Inductance |
LBM
|
0.09 mH |
| MAGNET SYSTEM |
|
|
| Magnet System Type |
|
Ferrite |
| Magnetic Gap Height |
HB
|
2.5 mm (0.098") |
| Flux Density |
B
|
- |
| BL Product |
BXL
|
4.15 NA |
| Max. Linear Excursion |
X
|
- |
| OPERATIONAL PARAMETERS |
|
|
| Suspension Compliance |
CMS
|
- |
| Mechanical Q Factor |
QMS
|
0.73 |
| Electrical Q Factor |
QES
|
0.64 |
| Total Q Factor |
Q/T
|
0.34 |
| Mechanical Resistance |
RMS
|
- |
| Moving Mass |
MMS
|
0.44 g |
| Equivalent Cas Air Load |
VAS
|
0.008 L |
| Cone / Dome Material |
|
Hand Treated Fabric |
| Effective Piston Area |
S
|
8.5 cm2 |
| Net Weight |
Kg
|
0.90 Kg |
last updated 030798
